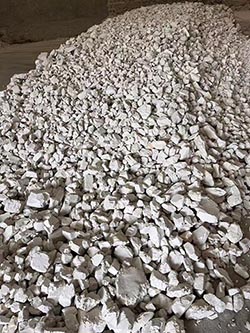

Chamotte (Calcined Fireclay)
Chamotte, also known as Calcined Fireclay, is produced by calcining selected fireclay at high temperatures, forming a stable mullite–corundum crystalline structure. It offers high refractoriness, excellent thermal shock resistance, low thermal expansion, and strong slag corrosion resistance.
ZE XI MINERAL CO., LTD supplies high-quality chamotte for refractory bricks, castables, kiln furniture, foundry linings, and high-temperature industrial furnaces.
Key Properties
- High refractoriness and thermal stability
- Excellent thermal shock resistance
- Stable bulk density and volume stability
- Low impurity content
- Strong slag and corrosion resistance
Typical Applications
- Refractory bricks and shaped products
- Monolithic refractories (castables, gunning mixes, ramming mixes)
- Kiln furniture and kiln linings
- Steel foundry linings
- Incinerators, cement and glass furnaces
Technical Specifications
| Grade | Al₂O₃ (%) | Fe₂O₃ (%) | Bulk Density (g/cm³) | Refractoriness (°C) |
|---|---|---|---|---|
| ZX45 | ≥45 | ≤1.0 | ≥2.55 | ≥1700 |
| ZX44 | ≥45 | ≤1.3 | ≥2.50 | ≥1700 |
| ZX43A | ≥44 | ≤1.8 | ≥2.45 | ≥1650 |
| ZX43B | ≥44 | ≤2.0 | ≥2.40 | ≥1600 |
| ZX42 | ≥44 | ≤3.0 | ≥2.35 | ≥1600 |
Available Particle Sizes
Standard grain sizes available:
0–1 mm, 1–3 mm, 3–5 mm, 5–8 mm, 200 mesh
Customized particle size distributions are available upon request.

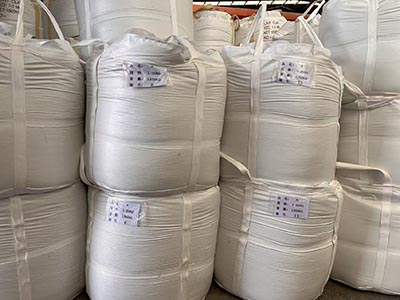

Packaging
25 kg plastic-lined woven bags
50 kg plastic-lined woven bags
1.0 MT / 1.25 MT / 1.3 MT / 1.5 MT jumbo bags
Custom packaging available upon request.
